PET Geogrid

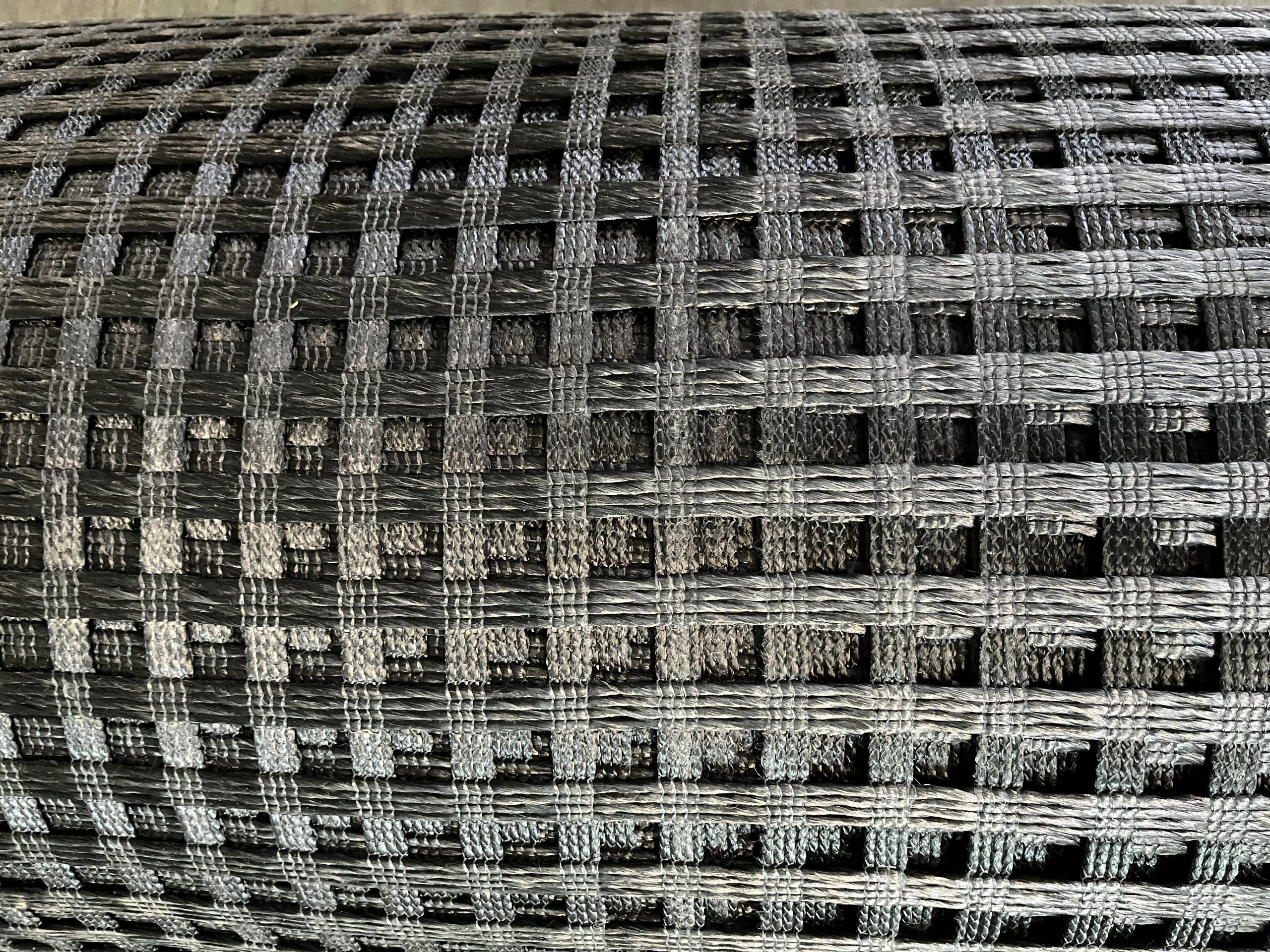

Name: PET Geogrid
Brand: Lianyi
Availability: PreOrder

PET Geogrids are woven from high-tenacity polyester yarns with PVC coating, offering high tensile strength and low elongation. Available in biaxial and uniaxial types, they reinforce base courses, steep slopes, and retaining walls. The open mesh ensures aggregate interlock, while the coating resists UV and installation damage. These geogrids improve load distribution, reduce base thickness, and extend service life for infrastructure projects.

Project SupportSelection · Specification · Installation

Supply OptionsStandard · OEM · Custom Production

Request a Quote WhatsApp Us

PRODUCT DETAILS

High-Strength Material Structure

Premium Polyester Yarn & Advanced Weaving Technology

Manufactured from high-tenacity continuous polyester filament yarns, PET Geogrids undergo a precision weaving process to form a dimensionally stable mesh. The grid is then impregnated with a durable PVC coating, which encapsulates each yarn bundle to provide additional protection against environmental stress, abrasion, and chemical attack during service life.

Excellent Reinforcement Performance

Improving Bearing Capacity and Structural Stability

By interlocking with surrounding soil or aggregate materials, PET Geogrids significantly enhance shear resistance and load transfer mechanisms. The high tensile modulus restricts lateral movement of base materials, reducing rutting and deformation. This enables thinner pavement sections while maintaining structural integrity, delivering measurable improvements in roadway performance and slope stability.

Effective Separation and Drainage Function

Preventing Aggregate Migration and Extending Service Life

The geogrid acts as a separation layer, preventing fine subgrade particles from migrating into the base course under cyclic loading. The open-grid design also facilitates lateral drainage, reducing pore water pressure buildup. Together, these functions preserve material gradation, minimize maintenance requirements, and provide long-term engineering reliability in demanding ground conditions.

Product Information

Item	Details
Raw Material	High-tenacity polyester (PET) yarns with PVC coating
Types / Models	Biaxial: 30/30, 50/50, 60/60, 80/80, 100/100, 150/150, 200/200 kN/m; Uniaxial: 60/30, 80/30, 100/30, 150/30, 200/30, 300/30, 500/50 kN/m
Width	2.0 m, 3.95 m, 5.95 m
Length	50 m, 100 m
Color	Black
Packaging	PE woven bags with colored tape
Certificates	ISO 9001, CE, SGI, TRI, SGS

Properties Of PET Geogrid

01

High-Tenacity PET Yarn

Delivers exceptional tensile strength with minimal elongation

02

Protective PVC Coating

Resists UV degradation, chemicals, and mechanical installation damage

03

Optimal Mesh Aperture

Ensures superior aggregate interlock and confinement efficiency

04

Creep-Resistant Structure

Maintains long-term reinforcement under sustained loading conditions

Advantages Of PET Geogrid

Advantages 1: High-tenacity PET yarn delivers exceptional tensile strength with low elongation, ensuring stable reinforcement under heavy traffic and dynamic loading conditions.
Advantages 2: Protective PVC coating provides superior resistance to UV radiation, chemical attack, and mechanical damage during installation and long-term service life.
Advantages 3: Optimal mesh aperture design maximizes aggregate interlock and confinement, improving load distribution and reducing required base course thickness.
Advantages 4: Engineered for creep resistance and durability, with design life up to 150 years, minimizing maintenance costs and ensuring long-term project reliability.

PET Geogrids Technical Specification

The following technical data table provides essential performance parameters for engineering evaluation and material selection. All values are determined under standardized test methods to ensure reliable comparison and quality assurance. These specifications serve as the basis for design calculations, project tenders, and construction quality control in soil reinforcement applications.

Property	Test Method	Unit	PET 30/30	PET 50/50	PET 60/60	PET 80/80	PET 100/100	PET 150/150	PET 200/200
Ultimate tensile strength (≥)	MD	kN/m	30	50	60	80	100	150	200
	CD	kN/m	30	50	60	80	100	150	200
Approximate Mesh Size	Direct measure	mm	12.7×12.7	25.4×25.4	40×40	50×50	–	–	–
After Treatment	–	–	PVC Impregnation	PVC Impregnation	PVC Impregnation	PVC Impregnation	PVC Impregnation	PVC Impregnation	PVC Impregnation
Elongation at maximum	MD	%	10	10	10	10	10	10	10
	CD	%	10	10	10	10	10	10	10
Temperature Resistant	–	°C	-100 ~ +280	-100 ~ +280	-100 ~ +280	-100 ~ +280	-100 ~ +280	-100 ~ +280	-100 ~ +280
Coating Content	–	%	≤30	≤30	≤30	≤30	≤30	≤30	≤30
Resistance to Installation Damage (SC/SW/GP)	–	%	95/93/90	95/93/90	95/93/90	95/93/90	95/93/90	95/93/90	95/93/90
Design Life	–	years	120	120	120	120	120	120	120
Carboxyl End Group (CEG)	GRI GG7	mol/kg	<30	<30	<30	<30	<30	<30	<30
Molecular Weight (Mn)	GRI GG8	–	>25,000	>25,000	>25,000	>25,000	>25,000	>25,000	>25,000

(PET Uniaxial Geogrids)

Property	Test Method	Unit	PET 60/30	PET 80/30	PET 100/30	PET 150/30	PET 200/30	PET 300/30	PET 500/50
Ultimate tensile strength (≥)	MD	kN/m	60	80	100	150	200	300	500
	CD	kN/m	30	30	30	30	30	50	50
Approximate Mesh Size	Direct measure	mm	12.7×12.7	25.4×25.4	40×40	50×50	–	–	–
After Treatment	–	–	PVC Impregnation	PVC Impregnation	PVC Impregnation	PVC Impregnation	PVC Impregnation	PVC Impregnation	PVC Impregnation
Elongation at maximum	MD	%	12	12	12	12	12	12	12
	CD	%	12	12	12	12	12	12	12
Temperature Resistant	–	°C	-100 ~ +280	-100 ~ +280	-100 ~ +280	-100 ~ +280	-100 ~ +280	-100 ~ +280	-100 ~ +280
Coating Content	–	%	≤30	≤30	≤30	≤30	≤30	≤30	≤30
Resistance to Installation Damage (SC/SW/GP)	–	%	95/93/90	95/93/90	95/93/90	95/93/90	95/93/90	95/93/90	95/93/90
Design Life	–	years	150	150	150	150	150	150	150
Carboxyl End Group (CEG)	GRI GG7	mol/kg	<30	<30	<30	<30	<30	<30	<30
Molecular Weight (Mn)	GRI GG8	–	>25,000	>25,000	>25,000	>25,000	>25,000	>25,000	>25,000
